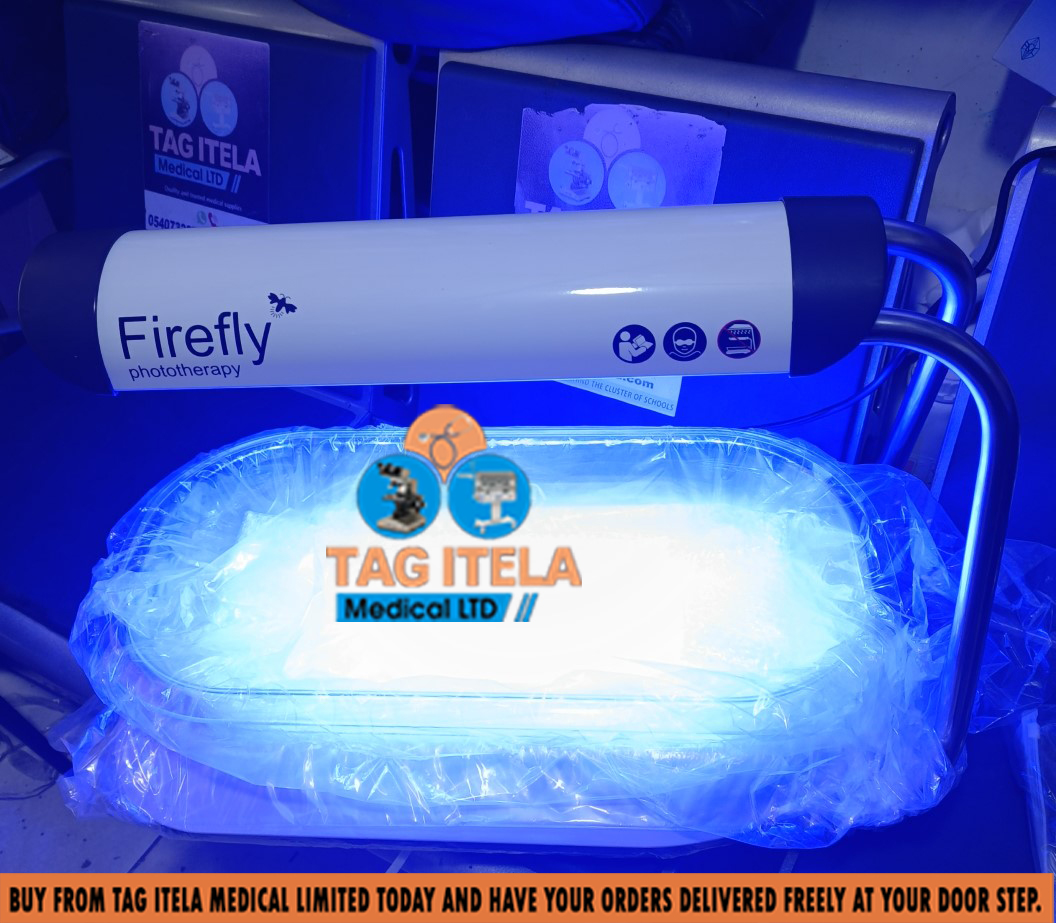

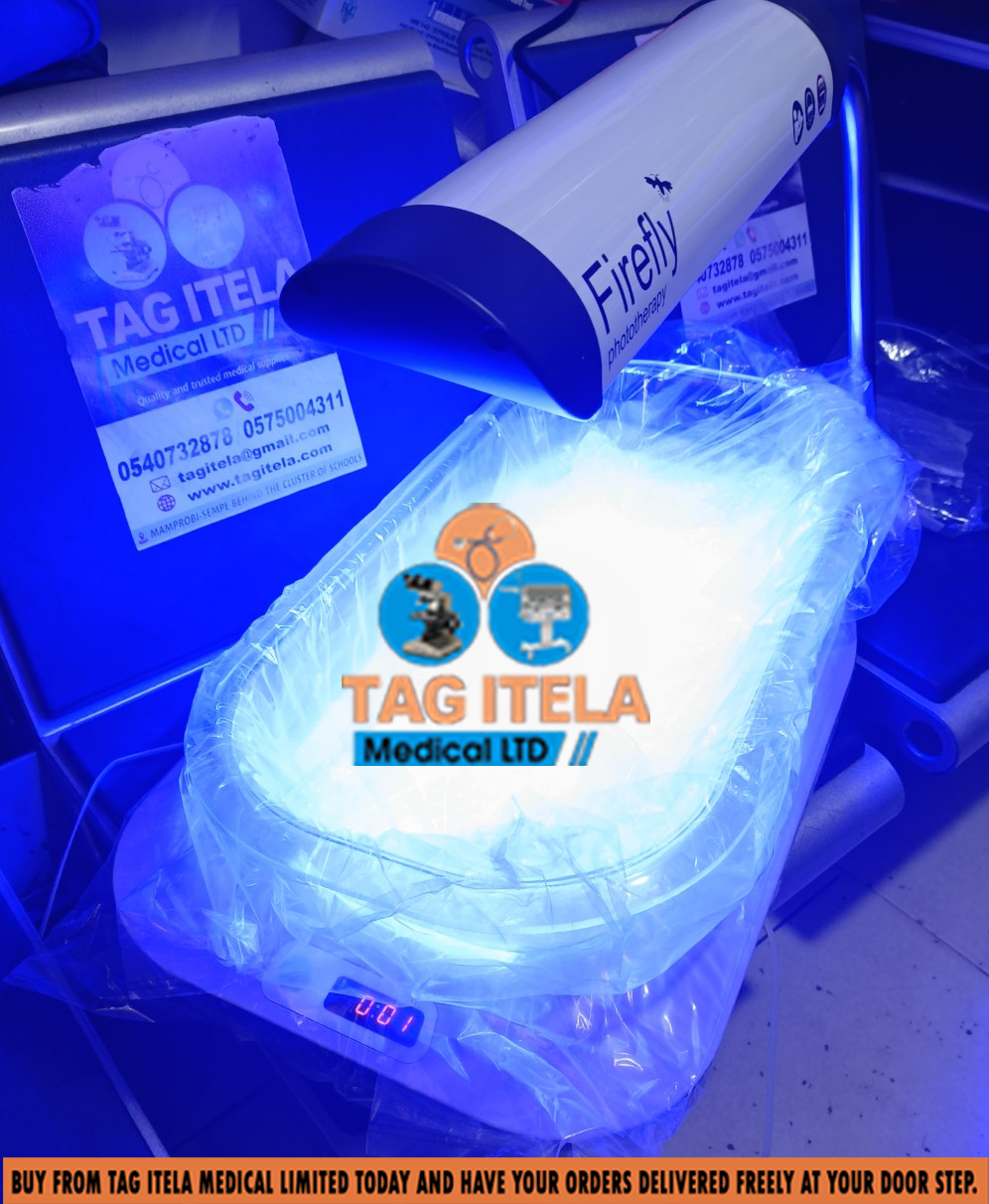

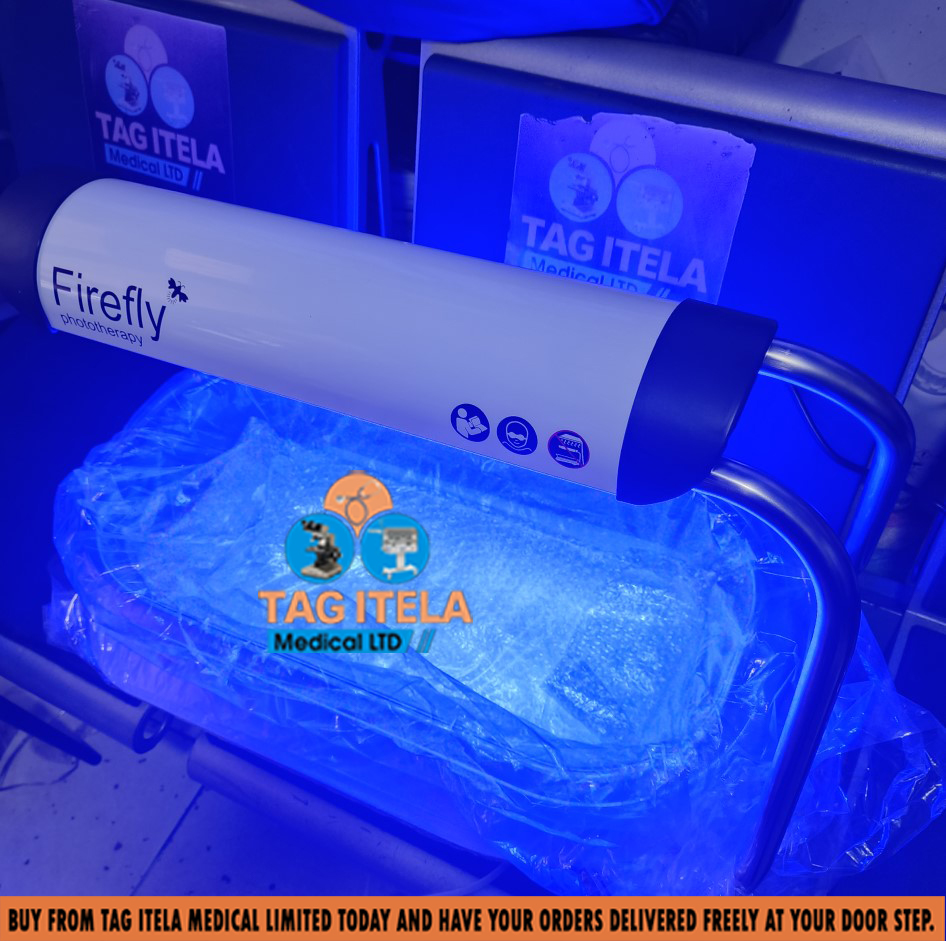

Infant Phototherapy Unit (Firefly) in ghana Health and Wellness

Dimensions and Weight

• Unit Dimensions (overall): 66 x 38 x 49.5 cm
• Unit Dimensions (top light): 51.6 x 12.5 x 6.3 cm
• Unit Dimensions (bottom light): 64.7 x 38 x 10 cm
• Net Weight: 13 kg

Performance

• Peak Wavelength: 455 to 470 nm
• Lamp Duration : 44,000 hrs at max temperature
• Average Spectral Irradiance Top Light: 34.8 µW.cm-2.nm-1
• Average Spectral Irradiance Bottom Light: 50.4 µW.cm-2.nm-1
• Effective Surface Area Top Light: 53 cm x 24 cm
• Effective Surface Area bottom Light: 48 cm x 20 cm
• Irradiance Uniformity Ratio Top Light: 0.51 (IEC compliant –> 0.4)
• Irradiance Uniformity Ratio bottom Light: 0.72 (IEC compliant –> 0.4)

Power characteristics

• 60 watts
• 100-240 VAC
• 47/63Hz

COTS External PS

• International medical safety approvals
• ANSI/AAMI/EN 60601-1, UL/TUV
• Class I construction is standard (ground required)
• 100k hours MTBF
• Energy star efficiency level V compliant
• RoHS compliant
• Over voltage / over current protection

Operating Environment Specifications

• Ambient temp: +10°C to +35°C
• Humidity: 0% to 90% RH non condensing
• Atmospheric pressure: 70-106kPa
• Sealing: IPX3

Transport and Storage Environment Specifications

• Ambient temp: 0°C to +50°C
• Humidity: 0% to 90% RH non condensing
• Atmospheric pressure: 70-106kPa

Exclusions

• Not for use inside an incubator
• Not for use inside any radiant warmer
